Titanium Threaded Flanges for Pipeline Connections

Titanium Threaded Flanges for Pipeline Connections

Threaded titanium flanges are commonly used for pipe connection. Its main material is industrial pure titanium or titanium

alloy. The pressure rating packages include PN6,PN10,PN16,PN25,PN40. Among them, the common specifications of

PN6 range from DN10 to DN150.

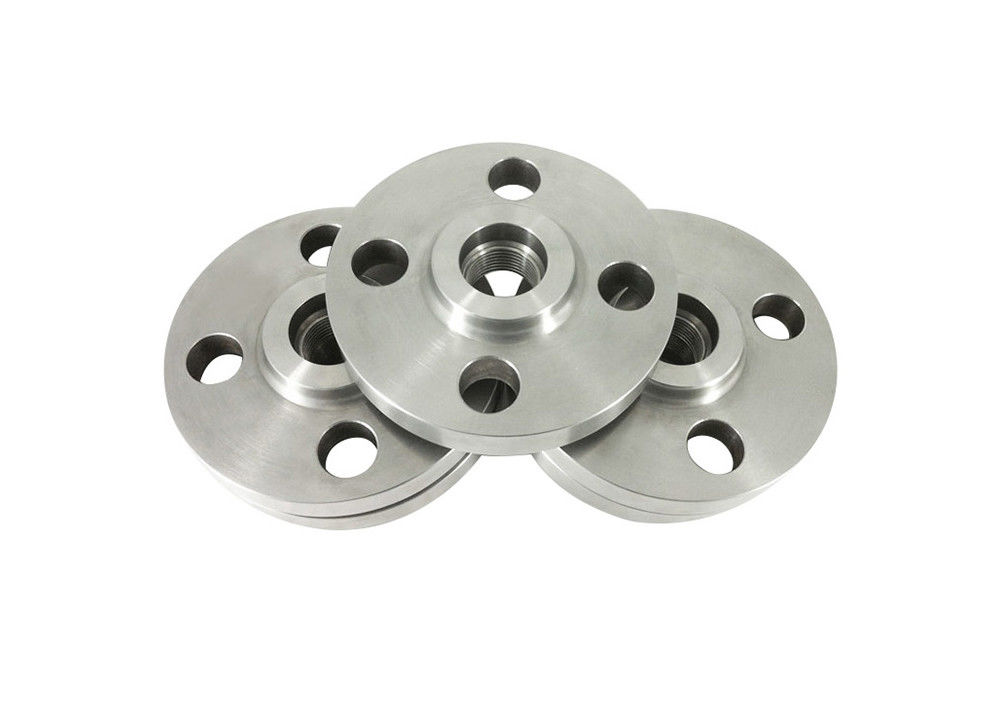

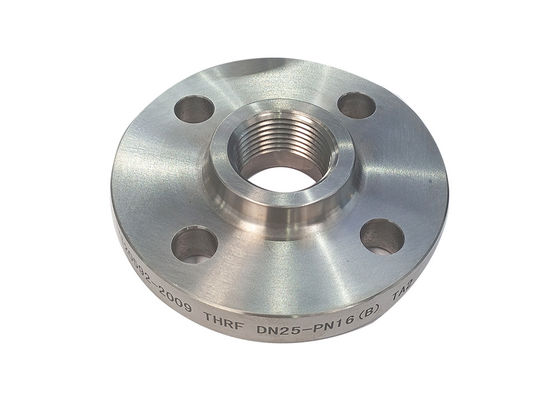

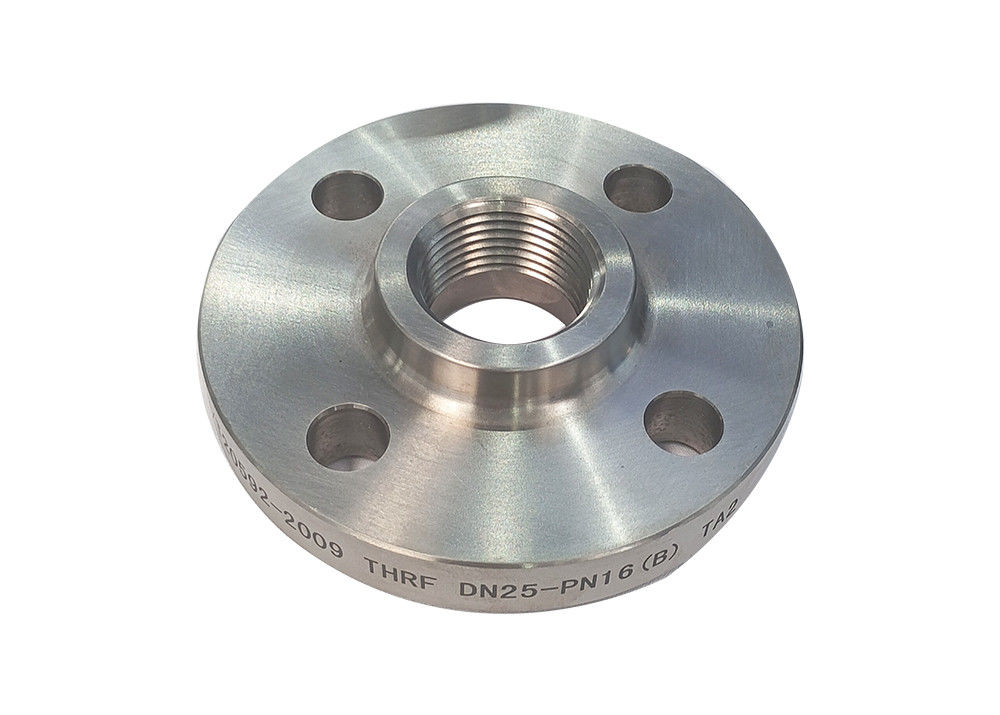

Titanium threaded flanges, also called titanium screwed flanges, include threads inside the flange bore which connects

to the external threads on a pipe without welding. Threaded pipe flanges typically have a RF and FF sealing face. Threaded

connections include NPT (National Pipe Thread) or BSPT (British Standard Pipe Taper).

Threaded Pipe titanium flange available with standard size as well as non-standard customization accordingly to customer’s

requirements or drawings. Our titanium flanges are manufactured critically to the exact standard, including ASME,JIS,DIN,

GB,GOST international standards to meet different requirements from the customers worldwide.

PN10/PN16(mm)

1.What are the outstanding performances of titanium flanges in terms of corrosion resistance?

Titanium flanges have extremely strong resistance to corrosive media such as seawater and chloride ions. Their corrosion

resistance far exceeds that of stainless steel and carbon steel, and they are especially suitable for harsh environments such

as Marine and chemical industries.

2:.Do titanium flanges need additional anti-rust measures?

No need. Titanium flanges can be used for a long time without coating or cathodic protection, avoiding the risk of rust and

significantly reducing maintenance requirements.

3.Where does the lightweight advantage of titanium flanges lie?

Titanium has a strength close to that of steel, but its density is only 60% of that of steel, which enables it to significantly

reduce the weight of equipment in fields such as aerospace and shipbuilding while maintaining high load-bearing capacity.

4.How does titanium flange perform in low-temperature environments?

Titanium flanges can still maintain excellent toughness in ultra-low temperature environments (such as liquid nitrogen and

liquid oxygen), making them an ideal choice for cryogenic engineering.

5.How is the high-temperature resistance of titanium flanges?

Titanium alloys (such as TA2 and TA9) can maintain stable mechanical properties at high temperatures of 300-500℃, and

some materials can even withstand higher temperatures for A short period of time.

6.How do titanium flanges resist high-temperature oxidation?

 At high temperatures, a dense oxide film forms on the surface of titanium, which can effectively isolate oxygen and prevent

further oxidation of the material.

7.Why is the service life of titanium flanges longer than that of stainless steel?

In corrosive environments, the lifespan of titanium flanges can be over ten times that of stainless steel, and they require

almost no maintenance, resulting in a lower total life cycle cost.

8.Why are titanium flanges still economical despite their high initial cost?

Although the initial purchase cost of titanium flanges is relatively high, their extremely long service life and very low

maintenance requirements significantly reduce the long-term usage cost, making their overall economic performance

better.

9.Are titanium flanges suitable for the pharmaceutical and food industries?

Yes. Titanium has non-toxic and harmless biocompatibility, and its material purity is high, fully meeting the strict hygiene

requirements of fields such as pharmaceuticals and food processing.

10.How are the processing and welding properties of titanium flanges?

Titanium flanges support various welding methods such as TIG welding and plasma welding, with high weld strength. They

can also be designed in interface forms such as flat welding, butt welding, and threaded welding, to meet the requirements

of different pipeline systems.

1.Superior Quality: We employ rigorous quality control measures, including ASME,JIS,DIN,GB ,GOST, ensuring that every

Titanium products we produce meets industry and customer requirements.

2.Modern Production Facilities: We have the most advanced factory and multiple titanium metal production lines, enabling us

to handle bulk orders and customized projects.

3.Logistics and Packaging: Every order is carefully packed in wood cabins or trays to prevent damage during transit, offering

maximum protection and safety.

4.Experienced Team: With years of professional knowledge in titanium metal manufacturing, we understand the nuances of

producing high-quality products to meet the needs of various industries.

5.Comprehensive Service: We offer customized solutions, fast lead times, and dedicated support throughout the purchasing

process.

6.Customer-Centric Services: We offer flexible payment options, comprehensive technical support, and dedicated customer

service to make your purchasing process seamless.
