Digital Display Electronic Dial Indicator with Metric and Inch Measurement
-
Hervorheben
digital dial indicator with metric inch
,electronic dial indicator with digital display
,digital measurement indicator with warranty
-
GarantieEin Jahr
-
ProdukttypDigitaler Indikator
-
MessungMetrik/Zoll
-
Reichweite0-25,4 mm/0-1"
-
Auflösung0.01mm/0.0005"
-
ZurückFlach Rücken und Rücken mit Lug
-
Messende Kraft1,5 n
-
PaketABS -Box
-
HerkunftsortShaanxi, China
-
MarkennameKM
-
ZertifizierungISO DIN GB RoHS
-
ModellnummerKM-231-25.4
-
Verpackung InformationenABS Box 16*8*6cm/Stück 0,45 kg/Stück
-
LieferzeitInnerhalb von 15 Tagen
-
ZahlungsbedingungenT/T, L/C, D/P, D/A, Western Union, Paypal, MoneyGram
-
Versorgungsmaterial-Fähigkeit50000 Pieces/Monat

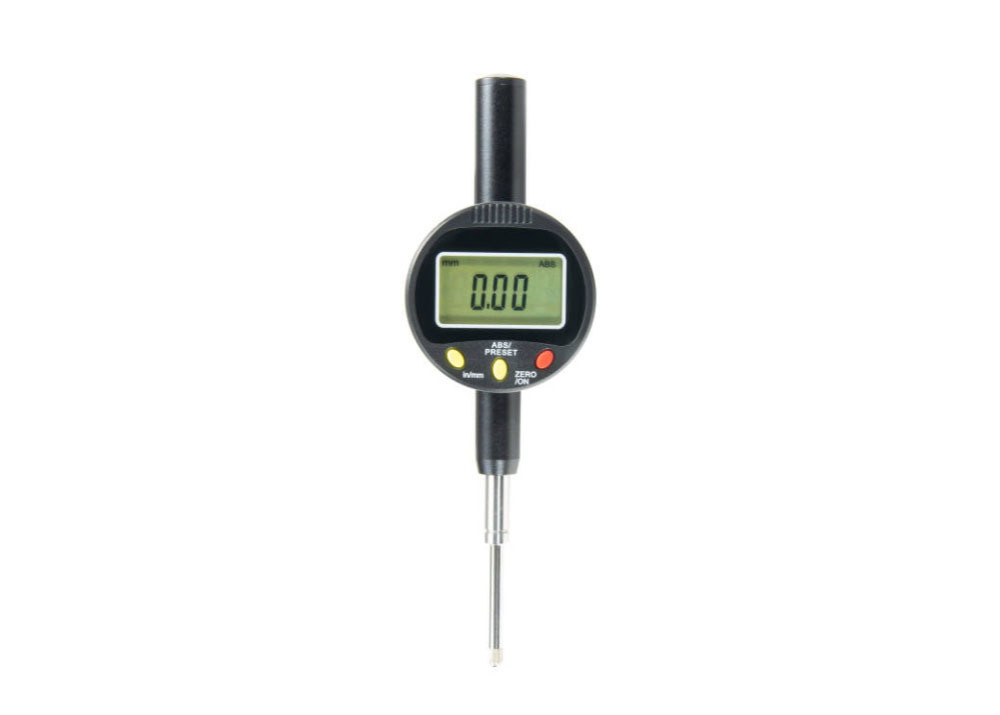

Digital Display Electronic Dial Indicator with Metric and Inch Measurement
Digital Display Electronic Dial Indicator with Metric and Inch Measurement
Product Overview
The digital indicator is primarily used to check tolerance variations during machined part inspections, measure beam or ring deflection under laboratory conditions, and other applications requiring precise small measurements.
Featuring a large LCD display, this electronic digital dial indicator provides quick, accurate dimensional measurements. The clear digital readout eliminates the need for complex calculations or conversions.
This economical digital dial indicator offers excellent value, with metric/inch conversion, data hold, and absolute positioning features, making it ideal for high-accuracy tasks.
Key Features
- Large LCD for easy reading.
- Metric/inch (mm/in) conversion.
- Absolute/incremental measurement modes.
- Power ON/OFF function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
Specifications
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-231-12.7 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-25.4 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-30 | 0-30mm/0-1.2″ | 0.01mm/0.0005″ | ±0.02mm |
| KM-231-50.8 | 0-50.8mm/0-2″ | 0.01mm/0.0005″ | ±0.02mm |
Usage Precautions
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface.
- Remove battery when not in use for extended periods.
Applications
Digital dial indicators are widely used in manufacturing for precision measurement tasks including quality control, machine setup, and alignment. They are also valuable in automotive applications for measuring engine components, brake rotors, and tire tread depth. In engineering fields, these indicators measure material deflection or deformation under load.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,
bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts or products will be replaced promptly. Our strict calibration and inspection
processes ensure product quality.
