Digital Indicator High Precision Meter with SPC Output for Quality Control
-
Hervorheben
high precision digital indicator
,SPC output quality control meter
,digital indicator with SPC output
-
GarantieEin Jahr
-
TypDigitaler Indikator
-
MessungMetrik/Zoll
-
Reichweite0-25,4 mm/0-1"
-
Auflösung0,001 mm/0,00005 "
-
ZurückFlach Rücken und Rücken mit Lug
-
Maximale Messkraft1.6n
-
KappeFest- und Bewegungskappe
-
PaketABS -Box
-
HerkunftsortShaanxi, China
-
MarkennameKM
-
ZertifizierungISO DIN GB RoHS
-
ModellnummerKM-232H-25.4
-
Verpackung InformationenABS Box 20*10*8cm/Stück 0,45 kg/Stück
-
LieferzeitInnerhalb von 15 Tagen
-
ZahlungsbedingungenT/T, L/C, D/P, D/A, Western Union, Paypal, MoneyGram
-
Versorgungsmaterial-Fähigkeit50000 Pieces/Monat
Digital Indicator High Precision Meter with SPC Output for Quality Control
Digital Indicator High Precision Meter with SPC Output for Quality Control

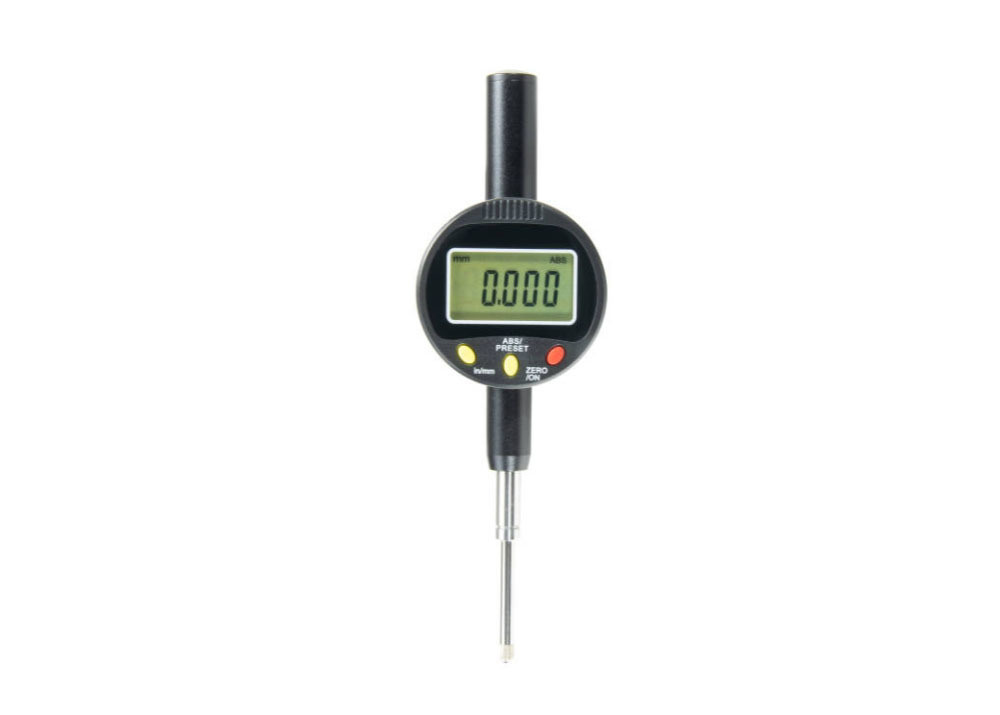

The digital indicator is primarily used to check tolerance variations during machined part inspection, measure beam or ring deflection under laboratory conditions, and other applications requiring precise small measurements.Featuring a large LCD display, this electronic digital dial indicator provides quick, accurate dimensional measurements. The clear numerical display eliminates complex calculations or conversions.This economical digital dial indicator offers metric/inch conversion, data hold, and absolute positioning capabilities, making it ideal for high-accuracy tasks.
Key Features
- Large LCD for easy reading.
- Metric/inch conversion capability.
- Absolute/incremental measurement modes.
- Power on/off function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
Specifications
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-232H-12.7 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | ±0.004mm |
| KM-232H-25.4 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-30 | 0-30mm/0-1.2″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-50.8 | 0-50.8mm/0-2″ | 0.001mm/0.00005″ | ±0.006mm |
Usage Precautions
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface; avoid metal contact with output end.
- Remove battery when not in use for extended periods.
Applications
Widely used in manufacturing for precision measurement tasks including quality control, machine setup, and alignment. Common applications in automotive industry include measuring engine components, brake rotors, and tire tread depth. Also valuable in engineering for measuring material deflection or deformation under load.
