Dial Comparator Gauge for Precision Runout and Flatness Testing with ±50 mm Range and 0.001mm Graduation

Dial Comparator Gauge for Precision Runout and Flatness Testing with ±50 mm Range and 0.001mm Graduation

Description:

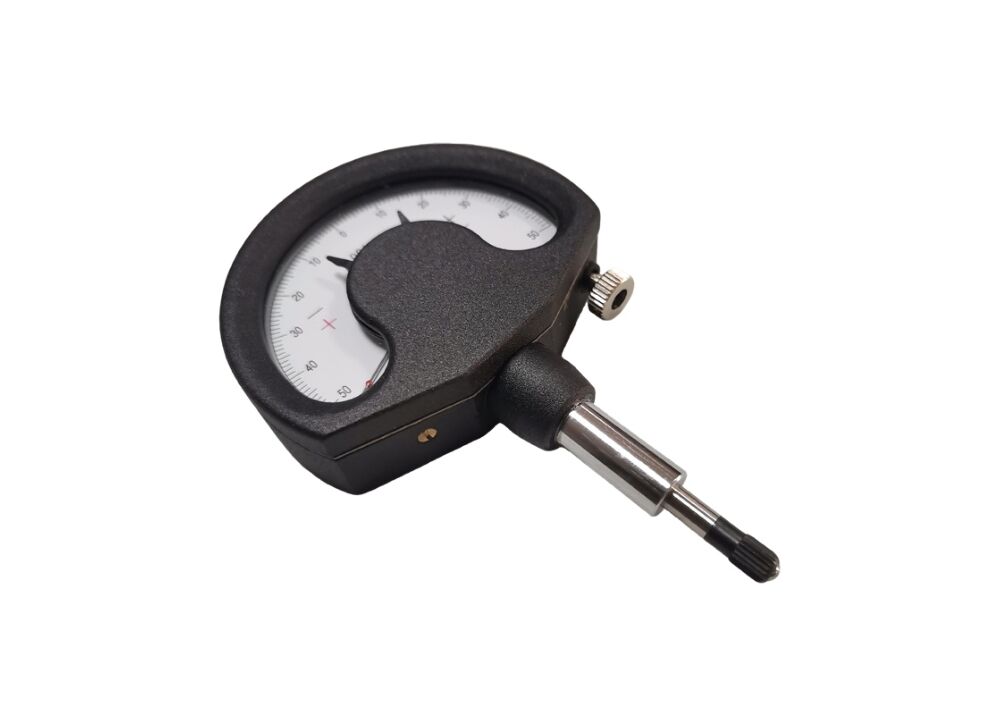

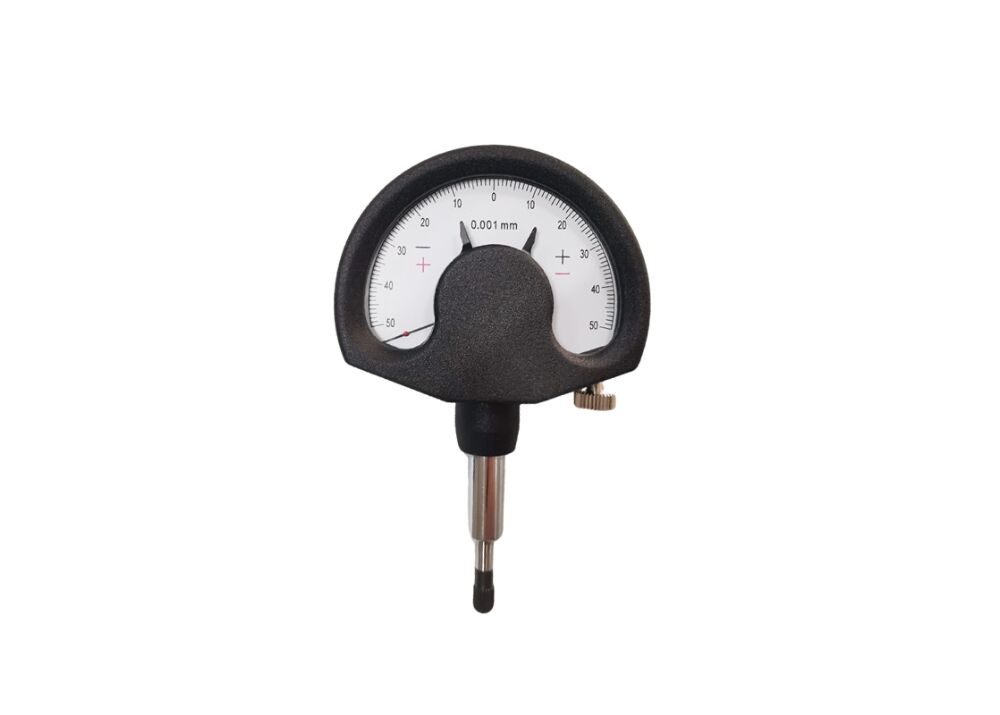

This is metric measurement mechanical dial comparator, with ±0.50mm range, 0.001mm graduation. Dial comparator

is a comparator with a dial gauge. It is used in engineering or manufacturing to measure and compare the size and shape

of workpieces. The dial comparator works by placing the workpiece on a measuring platform and using a dial gauge to measure

the size or shape of the workpiece. A dial gauge is a measuring tool that can measure tiny distance or Angle changes and convert

them into readable indications.

Dial Comparators are commonly used in manufacturing, quality control, research and development, it can be used to check

whether the size and shape of the workpiece meet the requirements to ensure product quality. it also can be used to monitor

changes in the production process in order to adjust production parameters in time to ensure stable product quality.

Quick Detail:

1. Metric measurement.

2. With tolerance markers for easy reading.

3. Shockproof.

4. With adjustable tolerance marker.

5. Pinions and shafts of the movement are jeweled ensures the maximum sensitivity and accuracy.

6. The lockable fine adjustment screw allows for easy setting zero of the comparator.

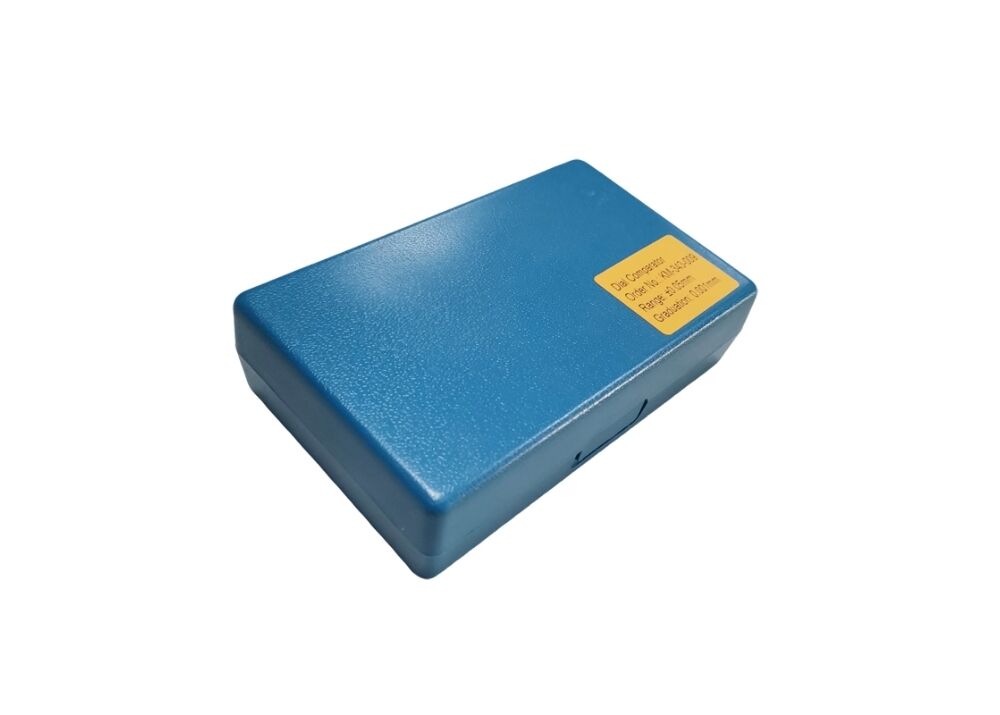

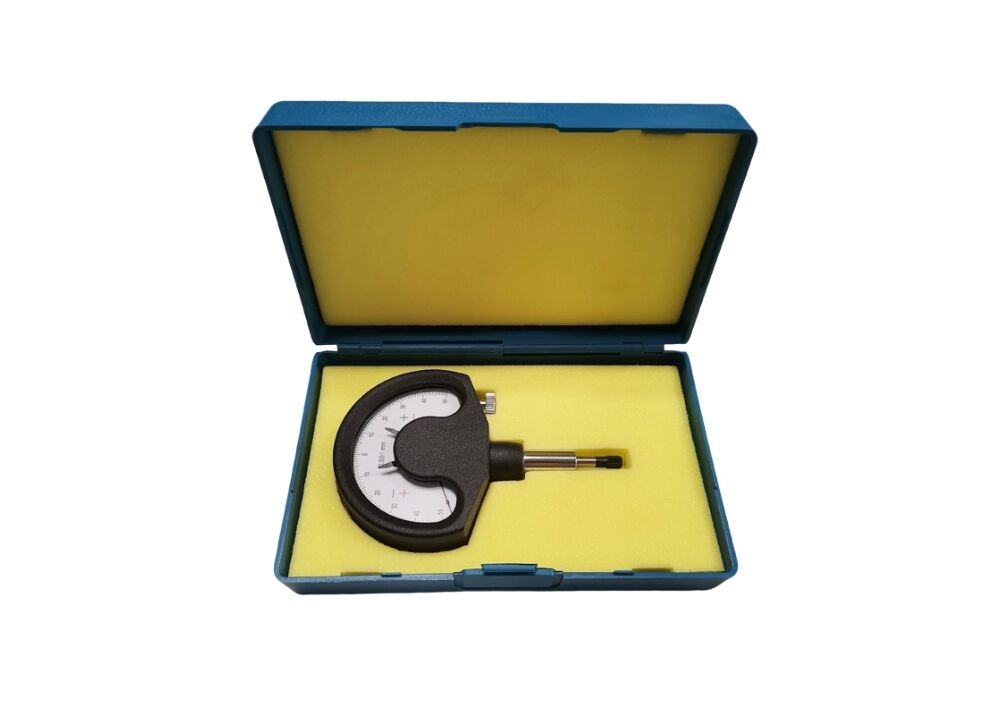

7. Supplied in fitted case.

Specification:

Precautions:

1. Before use, ensure that the equipment has been properly installed and calibrated.

2. When measuring the workpiece, it is necessary to ensure that the workpiece is properly placed on the measuring platform

    and is parallel to the measuring platform.

3. To ensure the accuracy and service life of the Dial comparator, regular maintenance and maintenance are required.

Applications:

Dial comparator is a kind of high-precision gauge widely used in metrology room testing and production site testing,

it can be used with a variety of benches (or watch frames) to complete the detection of the size and shape and position errors

of various precision parts; It can also be used as an indication table for various bore gauge, external caliber gauges and various

precision measuring instruments to achieve precise measurement and quality control of products.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
